Pig farm automation feeding line planning program

I. introduction of two kinds of feeding lines of pig farm automatic feeding system

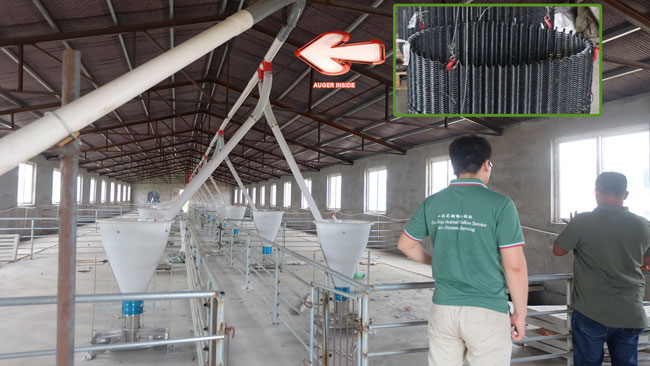

1. auger feeding line

A. equipment configuration:

Feeding line, feeding line motor, conveying line (PVC pipe), feeding pipe, feeding trough, feeding silo, etc., can be matched according to the actual use of related equipment, such as: pig farrowing crate, pig gestation stalls, pig nursery pen, dry and wet feeder and so on.

B, feeding pipe: galvanized pipe, feeding line is divided into dia. 48mm, 60mm, 75mm and other specifications.

C. Equipment features: fully automatic feeding of pigs can be realized, it will improve the breeding efficiency and can be configured according to different scales.

D. Using range: fattening house, nursery house, farrowing crate house, gestation stalls house, only suitable for pig house with the length of feed line less than 50 meters, and the feed need easy to crush . But the price is relatively cheap than chain feeding line.

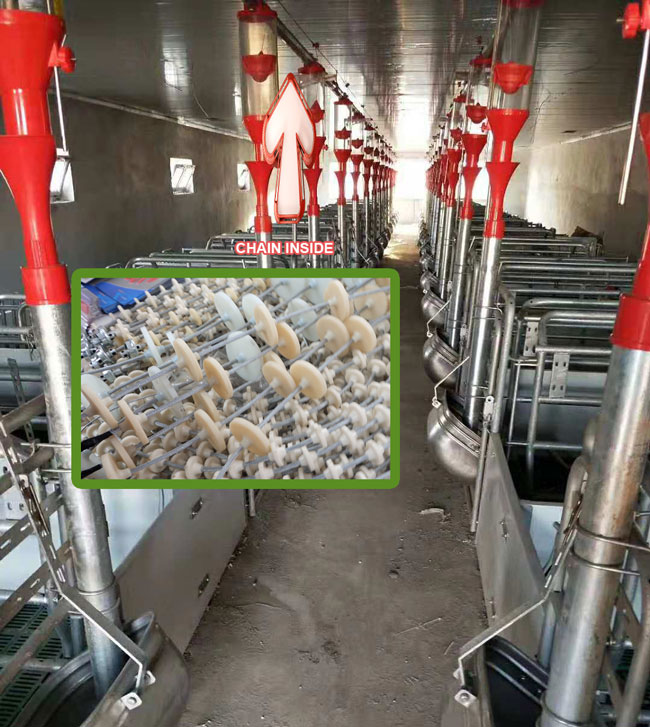

1. chain feeding line

A. Equipment configuration: steel wire rope nylon chain or stainless steel chain, feeding silo, main control box, variable diameter feeding silo, galvanized feeding pipe, quantitative cup, feeding trough, feeding pipe, etc., which can be matched with related supporting equipment according to the actual use, such as: pig farrowing crate house, pig nursery bed, gestaion stalls, fattening stalls, dry and wet feeder, etc.

B. There are different types of equipment to configure, which will be specifically explained in next article.

C. Using range: fattening house, nursery house, farrowing crate house, gestation stalls house and so on, The chain feeding line is the most widely used and the best automatic feeding system in pig farm.
