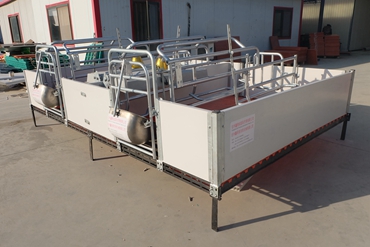

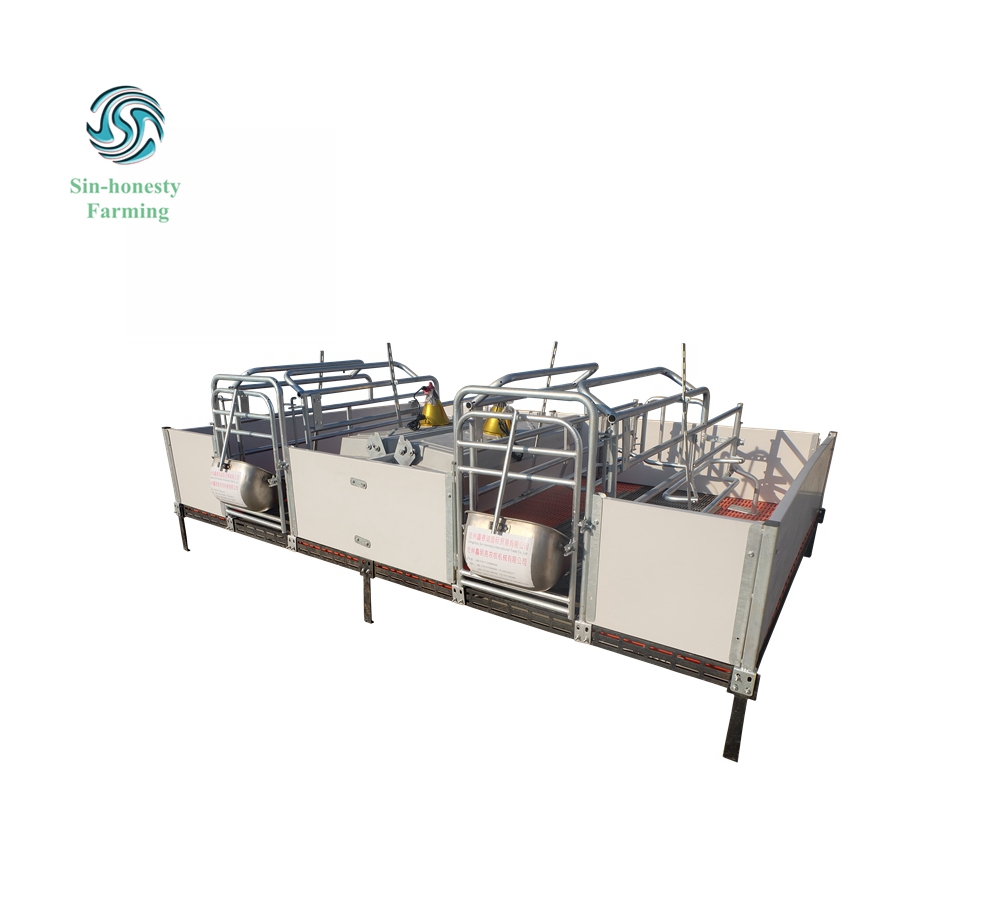

European type farrowing crateSHF-001
Farrowing crate provides the safe and comfortable environment for the sows for childbirth and breeding. Also important is to improve the survival rate of piglets. At the same time, farrowing crate has a great influence on the lactation and energy recovery of the sows.

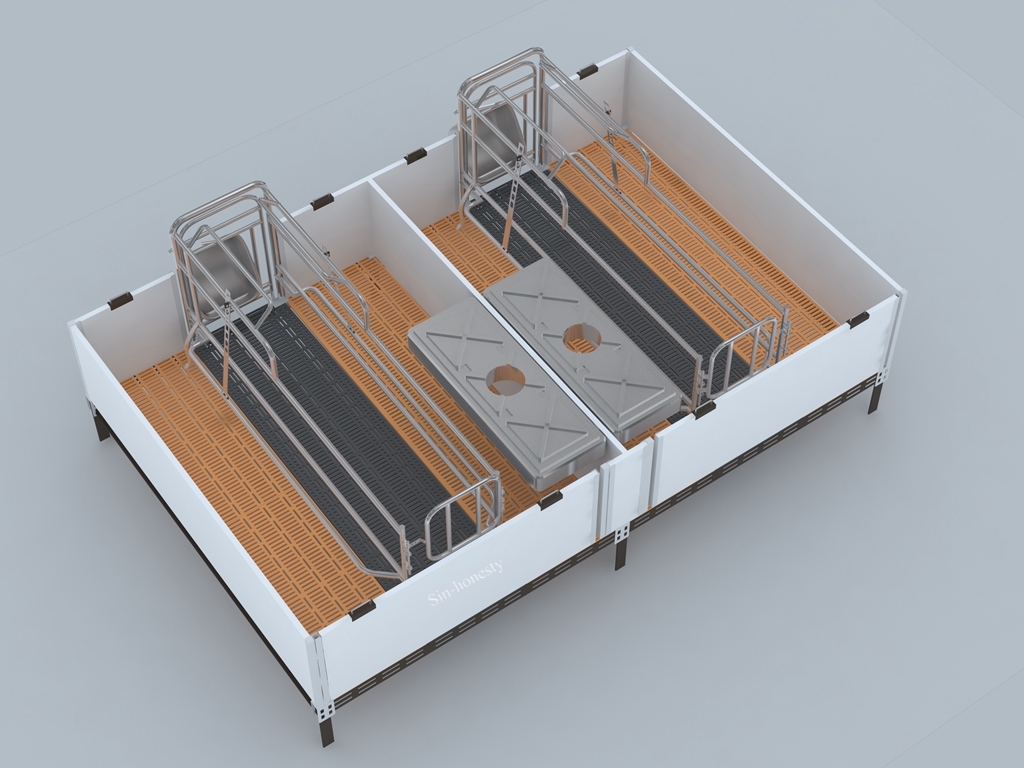

The European type farrowing crate is consists of hot galvanizing fence and crate, Cast iron slatted floor for sow, plastic slatted floor for piglet, incubator and heat lamp for piglet, sow feeder, cast iron support legs, pig feeder and drinkers.
We accept provided special design according your pig farm.

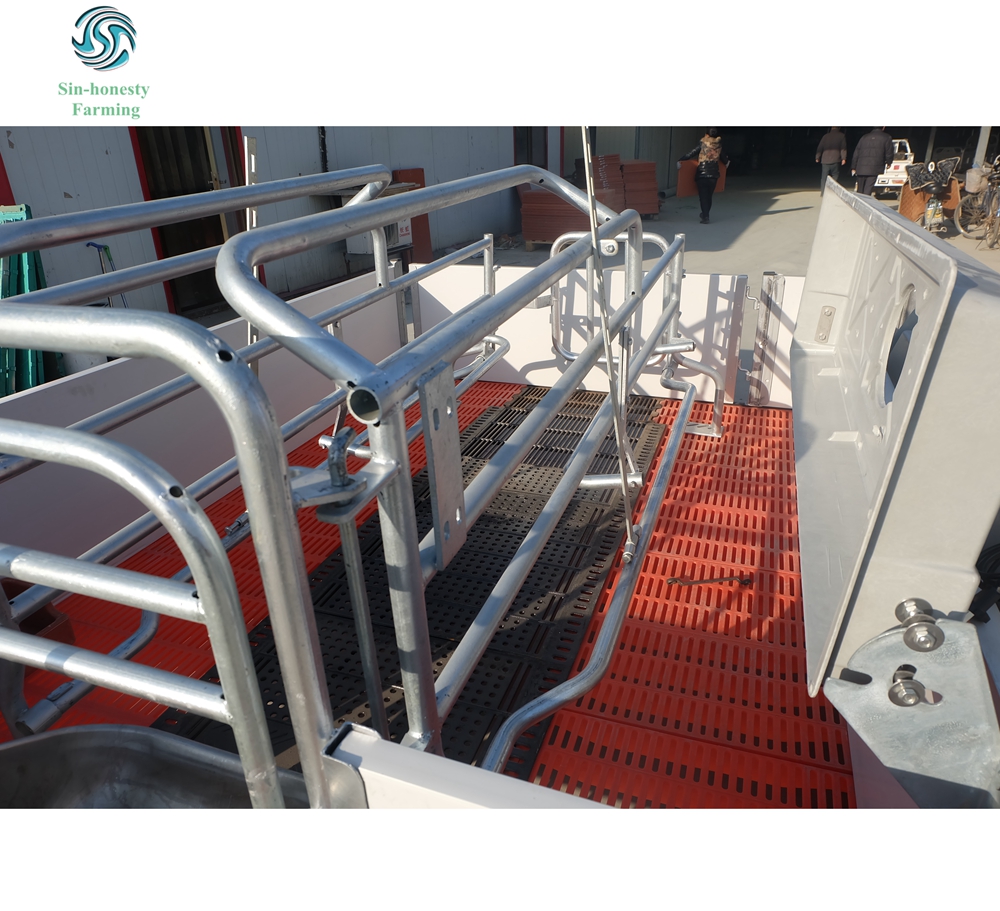

Product Details of farrowing crate
It is Adopt CO₂ gas shielded welding first, then do overall hot dip galvanized processing to the steel pipe, which makes it has high anti-corrosion, rust prevention, great durability.
The buffer bar will Slow sow down to floor to prevent piglets from harmed.
The adjust bar can make the crate suit for different ages piglet.
The adjustable back door design and side fence crate provides comfortable environment according to different sizes of sows.
Product Details of cast iron slatted floor
Nodular cast iron slat floor used for sow position has suitable space between rods and the smooth surface make sure it will not injure sow’s nipple. Cast iron slatted floor has high weight capacity of 800 kg. It can service for 30 years.
Product Details of plastic piglet floor
Plastic floor used for piglets has round section with smooth surface, which is easy for waste to leak down and will not injure piglets’ feet. Its weight capacity is approx 300 kg. Colors can be customized.
High quality anti-corrosion treatment to prevent rust for a long time.
Easy teat access and excellent pig protection – more animal welfare friendly
Farrowing crate design lets you choose which side you would like the front and rear gates to open.
| Fence | Size: 2400 mm*3600 mm*560 mm WT:2.5 mm 2100 mm*3600 mm*560 mm WT:2.5 mm |
| Material: Hot galvanizing steel pipe | |
| Sow feeder | Size: 420*360*230mm |
| Material: 304Stainless steel | |
| Slatted floor | Size: 600mm*700mm for sow, 500*700mm and 700*700mm for piglet |
| Material:Cast iron, Pure pp | |

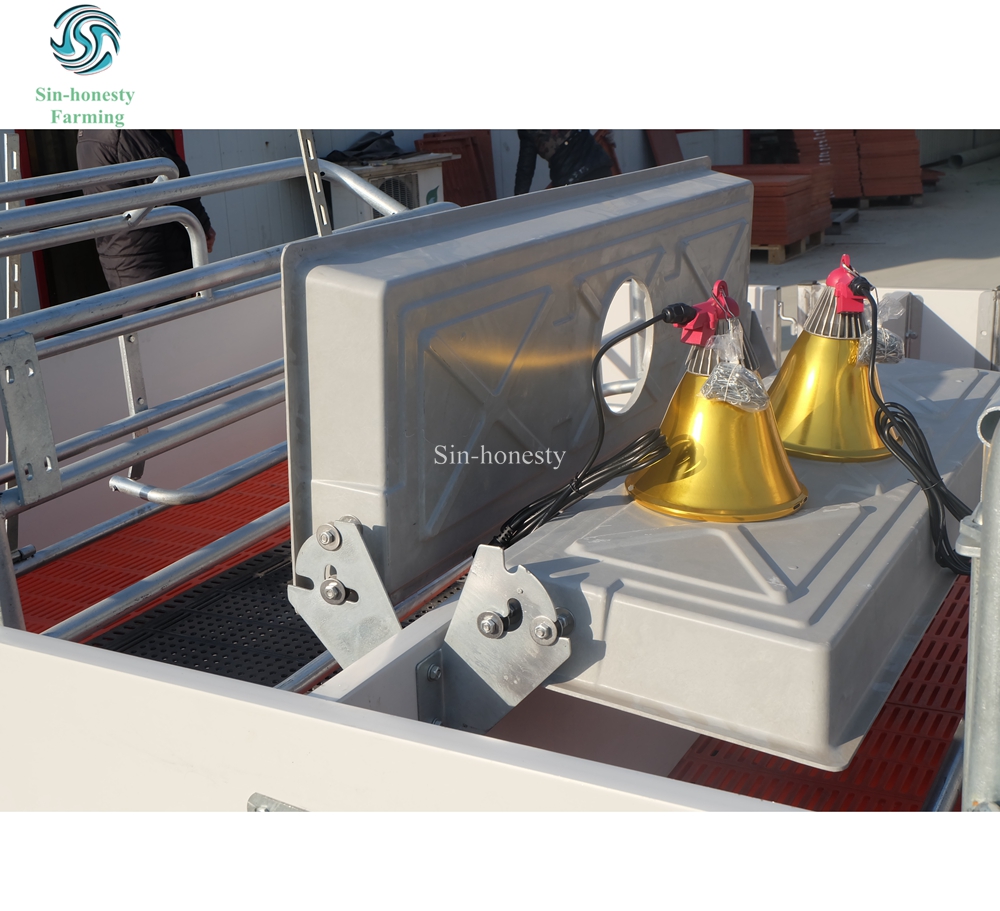

| Warm house | Size: 1100mm*600mm |
| Material:Glass fiber reinforced plastic | |
| Heat lamp | 100W or 150W |
| Other accessory | Stainless steel nipple drinker, Piglet feeder, Cast iron support legs and beams, Install screw |
